Wholesale Price Glan Polarizer Series,Custom Glan Polarizer Series

Glan Taylor Polarizers

Glan Taylor Polarizer is a device that produces linearly polarized light from light of other states of polarization.It consists two same birefringence material prisms which are separated by an air space.Glan taylor polarizer will divide an entering unpolarized beam into beam rays,one is the extraordinary that is transmitted through the other side,another is the ordinary ray that is totally internally reflected and absorbed. Features: Air-Spaced Close to Brewster's Angle Cutting High Polarization Purity Short-Length Suitable for Low Medium Power Application

Hot Tags : Glan Taylor Polarizer Air-Spaced Glan Polarizer Brewster Angle Glan Taylor Polarizer YVO4 Glan Taylor Polarizer α-BBO Glan Taylor Polarizer Calcite Glan Taylor Polarizer
Read More
Glan Laser Polarizers

Glan Laser Prisms is a glan taylor polarizer that is specially designed for high energy application. The side of housing are drilled two holes. The ordinary ray is reflected through an angle and exits the polarizer through one of holes. Features: Air-Spaced Close to Brewster's Angle Cutting High Polarization Purity Mounted with escape window Suitable for High Power Application

Hot Tags : Glan Laser Polarizer Glan-Laser Polarizer Glan-Laser Polarizers Glan-Laser Calcite Polarizer Glan-Laser Alpha-BBO Polarizer Glan-Laser YVO4 Polarizer
Read More
Wollaston Polarizers

Wollaston polarizer can separate an incident beam into two rays: extraordinary and ordinary ray with a deviation angle which is dependent on wavelength. Both rays are transmitted through the other surface. Features: Cemented or Optically Contacted Separate ordinary and extraordinary beams at certain angle Suitable for low power application and where the large deviation is required

Hot Tags : Wollaston Prism Polarizing Beamsplitter Birefringent Wollaston Polarizer Wollaston Polarizers High Extinction Ratio Wollaston Polarizers Wollaston Polarizers for Laser Systems High-Power Wollaston Polarizers
Read More
Rochon Polarizers

Rochon polarizer separates incident beam into ordinary ray and extrordinary ray like wollaston polarizer, but extraordinary ray is straight transmitted through, while ordinary is transmitted with a deviation angle. Features: Optically Contacted High Polarization Purity Suitable for Low or High Power Application

Hot Tags : Birefringent Rochon Polarizer Rochon Prism Polarizer High Extinction Ratio Rochon Rochon Polarizer for Laser Systems Wide Wavelength Range 500-4000 nm Cemented Rochon Polarizer
Read More
High Transmission Glan Laser Polarizers

High transmission Glan Laser Polarizer isspecially designed polarizer which is based on the Brewster Cut crystal and canimprove the transmission from normally >85% to 95%. This polarizer can bemade from both Calcite and YVO4. Features: Air-Spaced All Brewster's Angle Cutting High Polarization Purity Mounted with escape window Suitable for High Power Application High Transmission Brewster Angle Input

Hot Tags : High Transmission Glan Laser Polarizer Brewster Angle High Transmission Glan Laser Polarizers 350-2300nm High Transmission Glan Laser Polarizers Calcite High Transmission Glan Laser Polarizers YVO4 High Transmission Glan Laser Polarizers High Power High Transmission Glan Laser Polarizers
Read More
Glan Thompson Polarizers

Glan Thompson Polarizer consists two same calcite prisms which are comented together. The extraordinary ray is transmitted, while ordinary ray is deflected and absorbed. Features: Cemented Wide Acceptance Angle Field Suitable for Low Power Application

Hot Tags : Glan Thompson Polarizer a-BBO Glan Thompson Polarizer Calcite Glan Thompson Polarizer Glan-Thompson Prism AR-Coated Glan Thompson Polarizer Glan-Thompson Calcite Polarizers
Read More
Glan Thompson Polarizing Beamsplitter Cubes

Glan Thompson polarizing Beamsplitter Cubes uses two cemented calcite prisms to separate unpolarized light into s-polarized (45° deflected) and p-polarized (transmitted) beams with 90%+ transmission in a rectangular metal housing, ideal for applications requiring dual linear polarization states like interferometry and laser systems. Features: Cemmented High Polarization Purity High Transmission Suitable for Low Power Application Split o-ray & e-ray at 45deg

Hot Tags : high transmission Glan Thompson Polarizing Beamsplitter Cubes Glan Thompson Polarizing Beamsplitter Cubes High performance Glan Thompson Polarizing Beamsplitter Cubes Precision Glan Thompson Polarizing Beamsplitter Cubes Glan Thompson Polarizing Beamsplitter Cubes (CGTS) Glan Thompson Polarizing Beamsplitter Cubes for laser systems
Read More

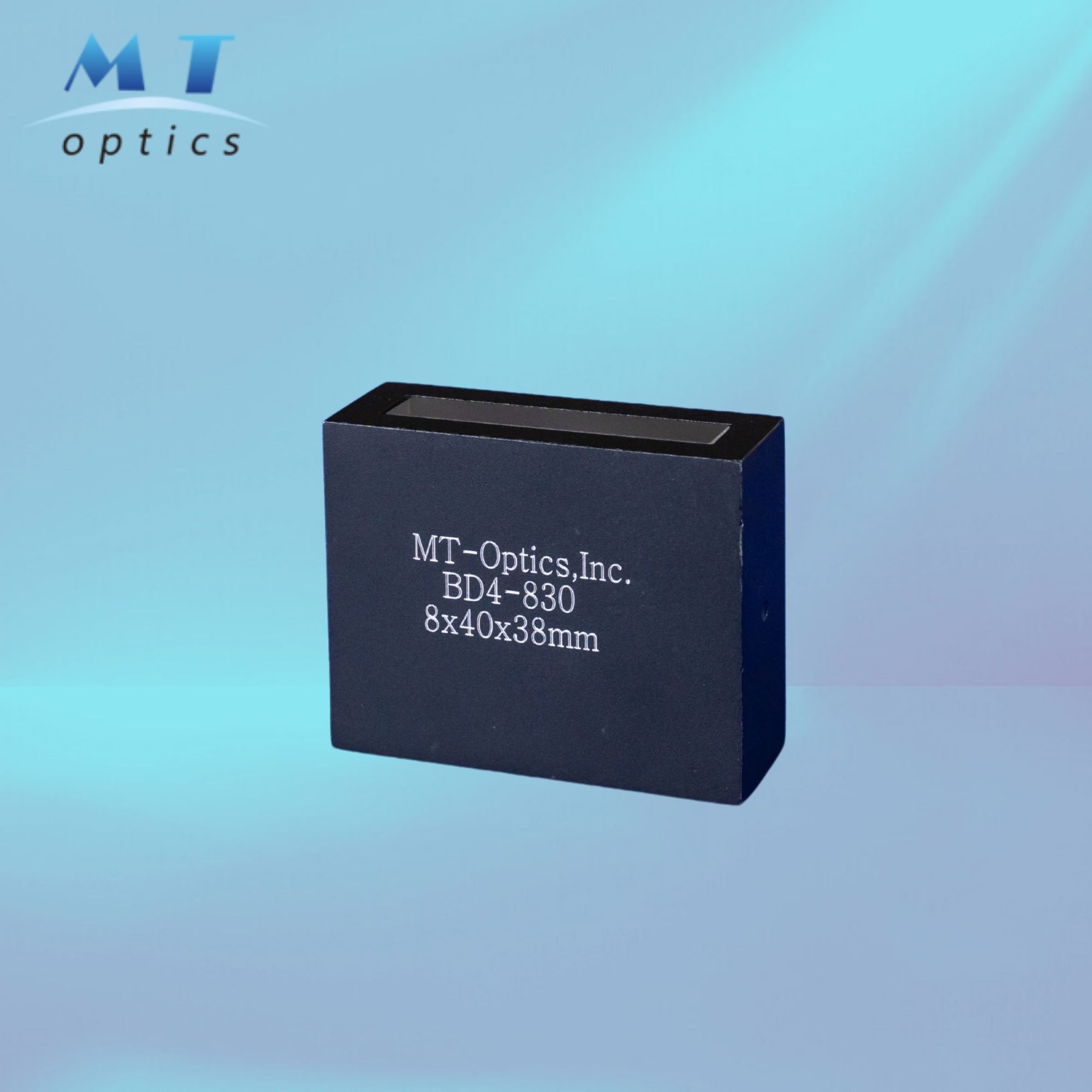

Polarization Beam Displacer

Polarization Beam Displacer is used to separate an unpolarized beam into two orthogonally polarized output beams which are parallel to each other. The ordinary polarization transmits straight through while the extraordinary walks off from the ordinary beam. It can be used as polarizing Beamsplitter. Polarization beam displacer can also be used to combine two orthogonally polarized beam. The most widely used materials for Polarization Beam Displacer are Yttrium Vanadate (YVO4), a-BBO, Calcite and etc. Features: Working Wavelength 350-4000nmYVO4, a-BBO, Calcite availableOrthogonally Polarized Outputs, Outputs Parallel to InputHigh Extinction Ratio (>105)

Hot Tags : Polarization Beam Displacer Polarizing Beam Displacers PBD polarization separation efficiency Custom PBD design service Quartz Polarization Beam Displacer 350-4000nm Polarization Beam Displacer
Read More
Broad Band Polarization Beam Combiner

Polarization Beam Combiner is made of two pieces YVO4 prism. The calcite polarization combiner can be with 45° of two polarization beam input. Please refer to Gian Thompson Polarizing Beamsplitter Cube which is made of calcite can also work as polarization beam combiner. But since it is glue cemented, the damage threshold is lower. While we specially design the air spaced Polarization Beam Combiner which is made of YVO4. The Angle between two input polarization beam is 100.6 deg. All the input & output surfaces are optical polished and coated. Features: Air Spaced High Damaged Threshold Broad Band for 500-4000nm

Hot Tags : Broad Band Polarization Beam Combiner High Extinction Ratio Polarization Beam Combiner Athermal Broadband Polarization Beam Combiner High-Power Laser Polarization Beam Combiner Free-Space Optics Polarization Beam Combiner Space-Grade Broadband Polarization Beam Combiner
Read More
