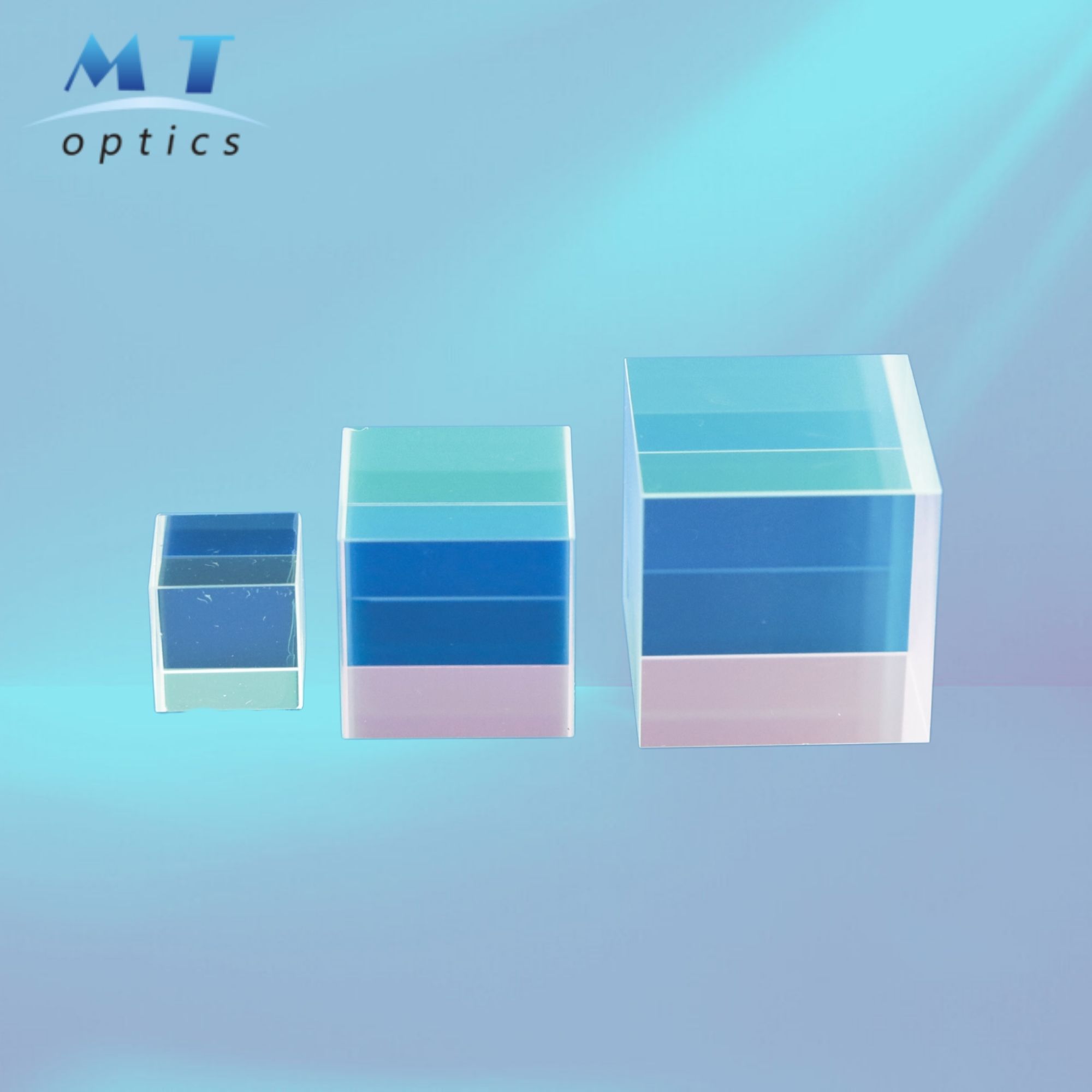

Ordinary Beam Splitting Film is an optical film that divides a light beam into two parts according to a specific ratio or method. For example, the intensity beam - splitting film divides light by intensity ratio. Widely used in optical instruments and optoelectronic devices, it realizes functions like beam splitting and light intensity adjustment, being a vital element in optical systems.
Item No :
BSProduct Origin :
FuZhouOrdinary beam splitting film is an optical functional coating designed based on thin-film interference principles, typically fabricated by depositing multilayer dielectric materials (e.g., TiO₂, SiO₂) or metal materials (e.g., Al, Ag) via evaporation or magnetron sputtering. It splits incident light into reflected and transmitted beams at a specific ratio (e.g., 50:50) with uniform beam splitting characteristics across a specified wavelength range (e.g., visible to near-infrared). Independent of the polarization state of incident light, it suits optical systems requiring intensity division, characterized by parameters such as splitting ratio accuracy, wavelength bandwidth, laser damage threshold, and surface finish. It is widely used in Michelson interferometers, LiDAR optical paths, and optical imaging systems for beam splitting and energy distribution, as well as in spectrometers and laser processing equipment for light intensity regulation.
|

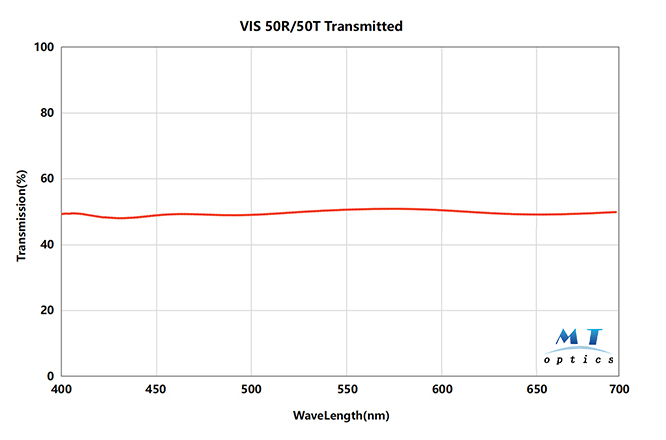

分光膜@400-700nm，T/R=50/50 |

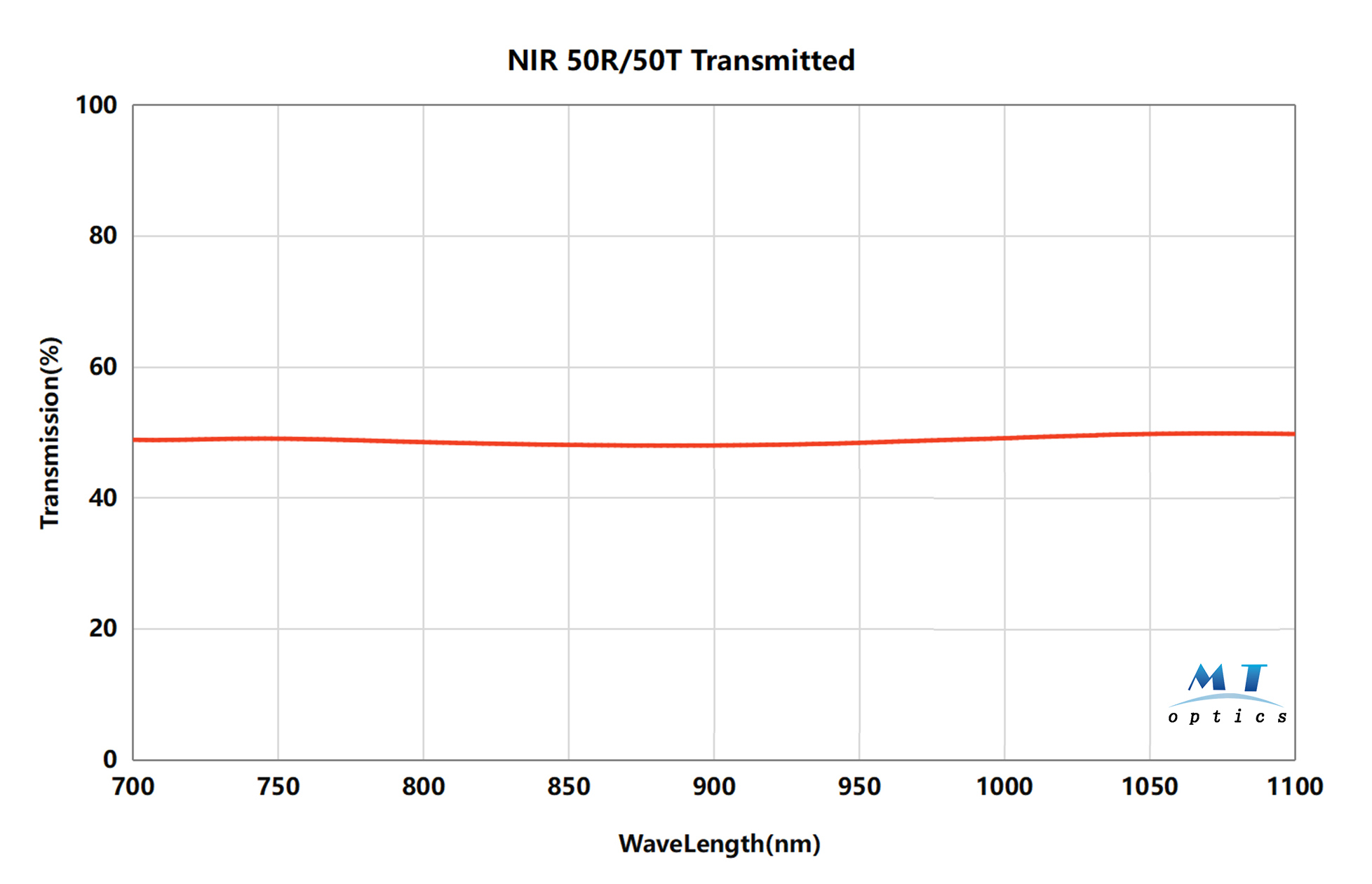

分光膜@700-1100nm，T/R=50/50 |

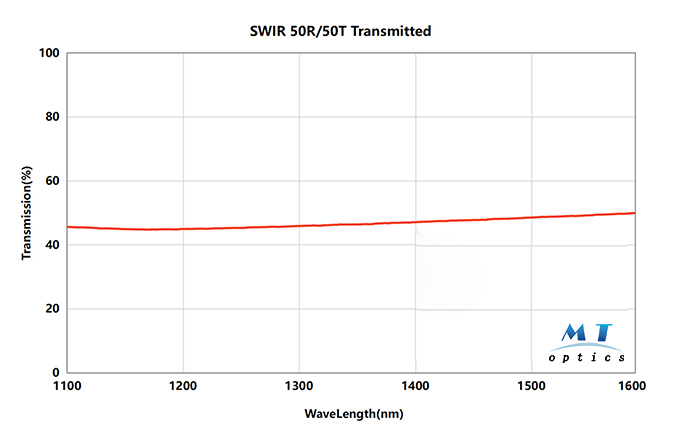

分光膜@1100-1600nm，T/R=50/50 |
Ordinary Beam Splitting Film is an optical film that divides a light beam into two parts according to a specific ratio or method. For example, the intensity beam - splitting film divides light by intensity ratio. Widely used in optical instruments and optoelectronic devices, it realizes functions like beam splitting and light intensity adjustment, being a vital element in optical systems.
