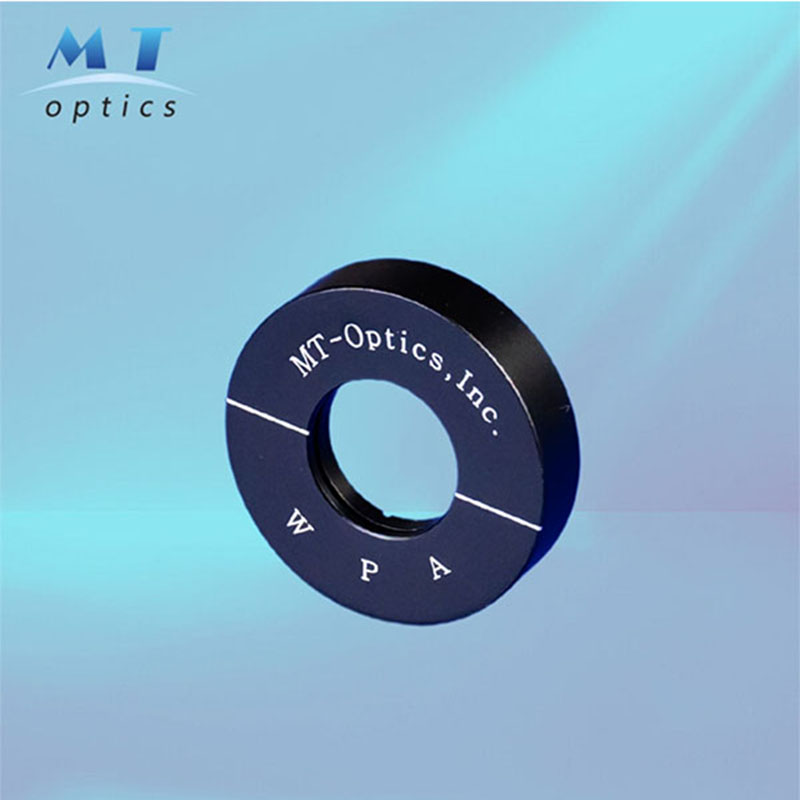

Polarization Rotator

We offers an extensive production line of birefringent crystals for polarization applications.

Introduction：

We offers an extensive production line of birefringent crystals for polarization applications. Our crystal polarizer family includes Glan-Taylor Polarizers, Glan-Laser Polarizers, Glan-Thompson Polarizers, Wollaston Polarizers, Rochon Polarizers and Quartz Polarization Rotators. Substrate options have α-BBO (UV), calcite (visible to Near-IR), yttrium orthovanadate (YVO4, Near-IR to Mid-IR), MgF2 (UV to Mid-IR), and crystal quartz (UV to Near-IR). Both the mounted and unmounted crystals are available. Contact us freely to select the ideal combination of construction type, substrate, coating design, angle of operation and laser damage resistance level to suit your applications.

Specifications：

Material   Crystal Quartz

Dimension Tolerance+0.0/-0.1mm

Wavefront Distortion    ＜λ/8 @ 632.8nm

Wavelength Range 440-1600nm

Rotation Accuracy  ＜5′

Surface Quality 20/10

Clear Aperture ＞central 90% of diameter

AR Coating   R＜0.25% @ per surface at central wavelength

Rotation Orientation     Clockwise（right-handed,standard）

Feature：

 •  Excellent optical performance;

 •  All kinds of coatings are available;

 • Custom designs for other sizes and coatings are also available  upon request;

 •  Left-handed polarization rotator is also available.

Order Information：

Polarizing Rotator：

Standard Wavelength（λ）：
