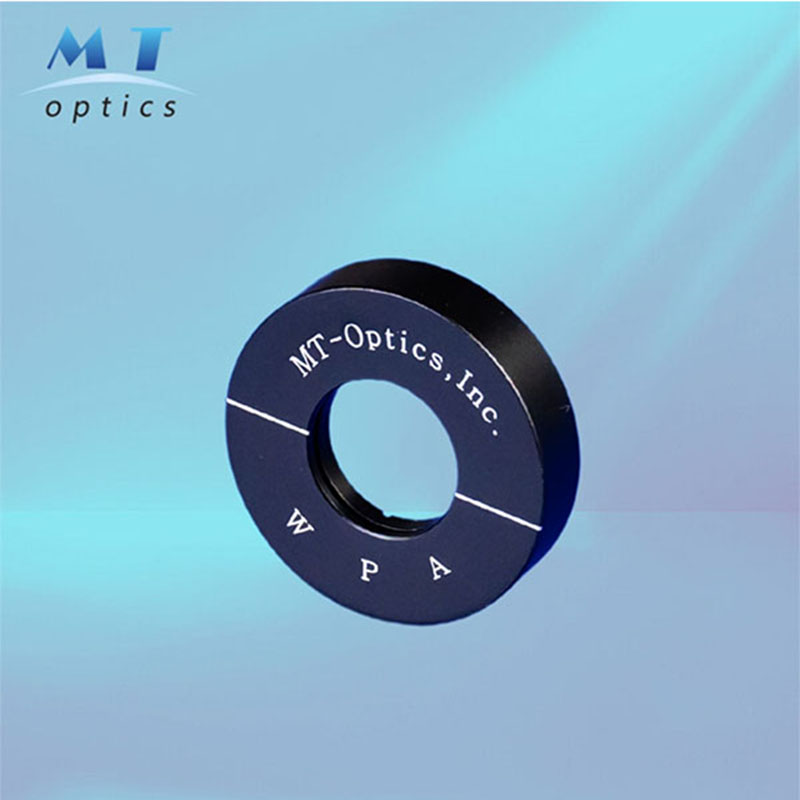

Polarization Rotator

We offers an extensive production line of birefringent crystals for polarization applications.   Introduction： We offers an extensive production line of birefringent crystals for polarization applications. Our crystal polarizer family includes Glan-Taylor Polarizers, Glan-Laser Polarizers, Glan-Thompson Polarizers, Wollaston Polarizers, Rochon Polarizers and Quartz Polarization Rotators. Substrate options have α-BBO (UV), calcite (visible to Near-IR), yttrium orthovanadate (YVO4, Near-IR to Mid-IR), MgF2 (UV to Mid-IR), and crystal quartz (UV to Near-IR). Both the mounted and unmounted crystals are available. Contact us freely to select the ideal combination of construction type, substrate, coating design, angle of operation and laser damage resistance level to suit your applications.   Specifications： Material   Crystal Quartz Dimension Tolerance+0.0/-0.1mm Wavefront Distortion    ＜λ/8 @ 632.8nm Wavelength Range 440-1600nm Rotation Accuracy  ＜5′ Surface Quality 20/10 Clear Aperture ＞central 90% of diameter AR Coating   R＜0.25% @ per surface at central wavelength   Rotation Orientation     Clockwise（right-handed,standard）     Feature：  •  Excellent optical performance;   •  All kinds of coatings are available;  • Custom designs for other sizes and coatings are also available  upon request;  •  Left-handed polarization rotator is also available.   Order Information： CPR --- 127 --- R045 W1064  ↓   ↓   ↓ ↓ Product Code   Diameter=12.7mm   Rotation=45° Wavelength "λ"=1064nm     Polarizing Rotator： Part Number   Diameter（mm）    Rotation（clockwise）   CPR-127-R045-λ 12.7 45° CPR-150-R045-λ 15.0 45° CPR-200-R045-λ 20.0 45°  CPR-254-R045-λ       25.4 45° CPR-127-R090-λ 12.7 90° CPR-150-R090-λ 15.0 90° CPR-200-R090-λ 20.0 90° CPR-254-R090-λ 25.4 90°   Standard Wavelength（λ）：  532nm    632.8nm 1064nm
