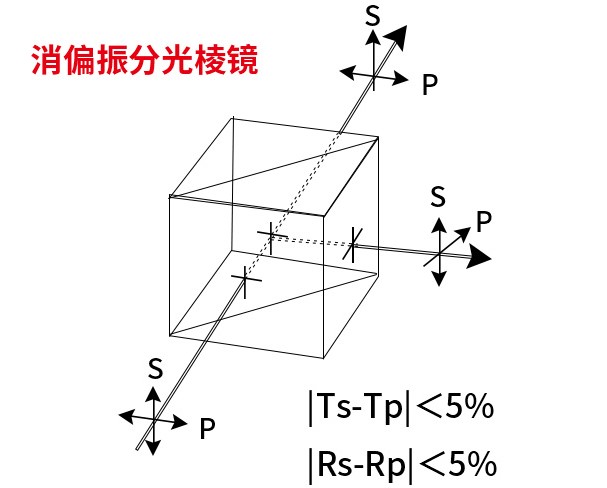

Non polarizing Beamsplitter Cube consists of a pair of precision high tolerance right angle prisms cemented together with a metallic-dielectric coating on the hypotenuse of one of the prisms. The low polarization dependence of the metallic-dielectric coating allows the transmission and reflection for S- and P- polarization states to be within 5% of each other. This means that they will not change the state of polarization of the incident beam. We offer both broadband and single wavelength non-polarizing cube beamsplitters (NPBS). An antireflective coating has beem applied to each face of the beamsplitter in order to produce maximum transmission efficiency for the appropriate wavelength range.
![]() |
Item No :
NPBSProduct Origin :
FuZhouSpecifications:
Dimension Tolerance:
|
±0.2mm |
Flatness: | λ/4 @ 632.8nm |
Surface Quality: | 60/40 |
Beam Deviation: | < 3 arc minutes |
Absorption: | <10% |
Transmittance and Reflectance: | Rs=45%±5%,Rp=45%±5%; Tp=45%±5%,Ts=45%±5% |
Coating: | Hypotenuse face: Polarization beamsplitter coating All input and output faces: AR Coating |
Narrow Band:BK7 Material
Part No. | Standard Wavelenghth | Size(mm) |
NPBS-101 |
488,532,633,650,808,850,980,1064,1310,1550nm |
5×5×5 |
NPBS-102 | 10×10×10 | |
NPBS-103 | 12.7×12.7×12.7 | |
NPBS-104 | 15×15×15 | |
NPBS-105 | 20×20×20 | |
NPBS-106 | 25.4×25.4×25.4 |
Broad Band:ZF Glass
Part No. | Standard Wavelenghth | Size(mm) |
NPBS-201 | 400-700,700-1100,1100-1600nm | 5×5×5 |
NPBS-202 | 10×10×10 | |
NPBS-203 | 12.7×12.7×12.7 | |
NPBS-204 | 15×15×15 | |
NPBS-205 | 20×20×20 | |
NPBS-206 | 25.4×25.4×25.4 |
What is the use of NPBS?
NPBS is applied in optical systems requiring low polarization dependence. In optical measurements, it maintains the incident light’s polarization to ensure accuracy. In projection systems, it evenly splits beams, enhancing image brightness and color uniformity. In interference experiments, it guarantees consistent polarization of beams, improving interference effects. Its properties make it crucial in scenarios needing precise beam - splitting without altering polarization.
Core Application Areas of Non Polarizing Beamsplitter Cube (NPBS)
Application Field | Specific Function |
Laser Processing and Precision Measurement |
Splits high-power laser beams, with one path for material cutting and welding, and another for monitoring power stability;Maintains polarization state in laser interferometers to achieve nanometer-level displacement detection |
Imaging and Optical Detection |
Separates transmitted and echo signals in LiDAR to enhance detection accuracy in harsh environments;Distinguishes excitation light and signal light in microscopes and OCT systems to optimize imaging resolution of biological tissues |
Quantum Communication and Research |
Maintains photon polarization state in quantum key distribution to ensure secure quantum signal transmission;Enables polarization-lossless beam splitting in quantum experiments to support quantum state manipulation |
Spectral Analysis and Sensing |
Splits light into reference and sample beams to ensure measurement accuracy in spectrometers;Suppresses environmental interference to stabilize light intensity distribution, suitable for miniaturized sensors and precision metrology equipment |
